Beschreibung
Hier finden Sie alle wichtigen Informationen zu unseren Bügelschellen:
- Material: Stahl, verzinkt
- Dimensionen: Ø 29,0 – 165,0 mm
- Anwendungen: Abgasanlagen, Schlauchverbindungen, Kühlwasserschläuche

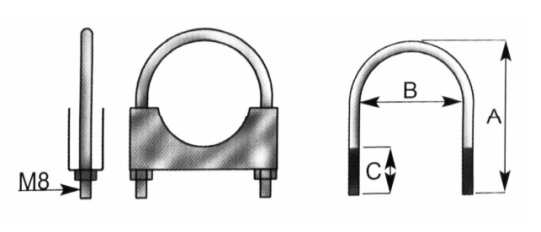

DurchmesserB in mm |
Zoll |
LängeA in mm |
GewindelängeC in mm |
Artikelnummer |
| 29,0 | 1 1/8″ | 50,0 | 25,0 | 5311 202 |
| 32,0 | 1 1/4″ | 60,0 | 23,0 | 5311 204 |
| 37,0 | 1 3/8″ | 62,0 | 26,0 | 5311 206 |
| 38,0 | 1 1/2″ | 60,0 | 26,0 | 5311 208 |
| 44,0 | 1 5/8″ | 70,0 | 29,0 | 5311 210 |
| 45,0 | 1 3/4″ | 75,0 | 25,0 | 5311 212 |
| 48,0 | 1 7/8″ | 75,0 | 25,0 | 5311 214 |
| 52,0 | 2″ | 75,0 | 25,0 | 5311 216 |
| 54,0 | 2 1/8″ | 85,0 | 25,0 | 5311 218 |
| 57,0 | 2 1/4″ | 85,0 | 40,0 | 5311 220 |
| 60,0 | 2 3/8″ | 90,0 | 33,0 | 5311 222 |
| 65,0 | 2 1/2″ | 95,0 | 35,0 | 5311 224 |
| 67,0 | 2 5/8″ | 90,0 | 22,0 | 5311 226 |
| 70,0 | 2 3/4″ | 95,0 | 22,0 | 5311 228 |
| 73,0 | 2 7/8″ | 96,0 | 22,0 | 5311 230 |
| 76,2 | 3″ | 100,0 | 20,0 | 5311 302 |
| 80,0 | 3 1/8″ | 120,0 | 32,0 | 5311 304 |
| 83,0 | 3 1/4″ | 110,0 | 24,0 | 5311 306 |
| 84,0 | 3 1/4″ | 110,0 | 40,0 | 5311 402 |
| 88,9 | 3 1/2″ | 115,0 | 24,0 | 5311 308 |
| 92,0 | 3 5/8″ | 130,0 | 30,0 | 5311 310 |
| 95,0 | 3 3/4″ | 140,0 | 40,0 | 5311 403 |
| 95,3 | 3 3/4″ | 135,0 | 40,0 | 5311 312 |
| 96,0 | 3 3/4″ | 125,0 | 40,0 | 5311 404 |
| 98,0 | 3 3/4″ | 150,0 | 40,0 | 5311 406 |
| 102,0 | 4″ | 130,0 | 24,0 | 5311 314 |
| 105,0 | 4 1/8″ | 140,0 | 35,0 | 5311 316 |
| 105,0 | 4 1/8″ | 195,0 | 40,0 | 5311 408 |
| 109,0 | 4 1/4″ | 150,0 | 40,0 | 5311 410 |
| 114,0 | 4 5/8″ | 150,0 | 40,0 | 5311 318 |
| 120,0 | 4 3/4″ | 170,0 | 40,0 | 5311 412 |
| 127,0 | 5″ | 165,0 | 33,0 | 5311 320 |
| 130,0 | 5 1/8″ | 177,0 | 48,0 | 5311 322 |
| 130,0 | 5 1/8″ | 185,0 | 60,0 | 5311 414 |
| 142,0 | 5 5/8″ | 195,0 | 40,0 | 5311 416 |
| 155,0 | 6″ | 195,0 | 40,0 | 5311 418 |
| 165,0 | 6 1/2″ | 220,0 | 55,0 | 5311 324 |
