Beschreibung

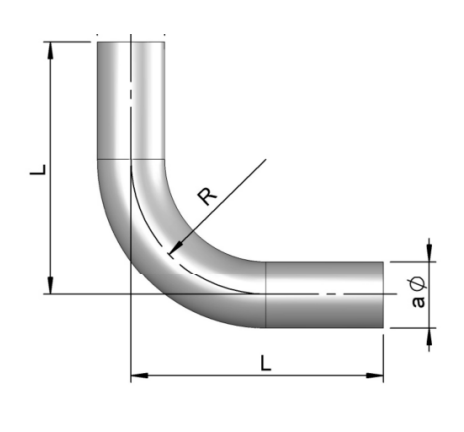

Hier finden Sie alle Informationen zu unseren langen 90° Rohrbögen ohne Aufweitungen.
Durchmessera in mm |
Zoll |
SchenkellängeL in mm |
BiegeradiusR |
ArtikelnummerStahl, aluminisiert |
ArtikelnummerEdelstahl |
| 38,0 | 1 1/2″ | 129,0 | 54,0 | 5350 800 | – |
| 45,0 | 1 3/4″ | 180,0 | 64,0 | 5350 801 | – |
| 48,0 | 100,0 | 5350 844 | – | ||
| 50,0 | 2″ | 190,0 | 95,0 | 5350 802 | – |
| 50,8 | 2″ | 190,0 | 95,0 | – | 5351 402 |
| 57,0 | 2 1/4″ | 240,0 | 85,0 | 5350 804 | – |
| 60,0 | 2 3/8″ | 240,0 | 100,0 | 5350 806 | – |
| 60,0 | 2 3/8″ | 240,0 | 100,0 | – | 5351 404 |
| 60,0 | 2 3/8″ | 280,0 | 130,0 | 5350 807 | – |
| 63,5 | 2 1/2″ | 190,0 | 85,0 | – | 5351 405 |
| 63,5 | 2 1/2″ | 265,0 | 85,0 | 5350 808 | – |
| 65,0 | 2 5/8″ | 265,0 | 91,0 | 5350 810 | – |
| 70,0 | 2 3/4″ | 270,0 | 98,0 | 5350 812 | – |
| 75,0 | 3″ | 290,0 | 135,0 | 5350 814 | – |
| 75,0 | 150,0 | 5350 845 | – | ||
| 76,2 | 3″ | 295,0 | 99,1 | 5350 816 | – |
| 76,2 | 3″ | 295,0 | 99,1 | – | 5351 406 |
| 80,0 | 290,0 | 115,0 | 5350 818 | – | |
| 88,9 | 3 1/2″ | 320,0 | 135,0 | 5350 821 | – |
| 88,9 | 3 1/2″ | 320,0 | 135,0 | – | 5351 408 |
| 90,0 | 150,0 | 5350 840 | – | ||
| 100,0 | 3 7/8″ | 380,0 | 203,0 | 5350 822 | – |
| 101,6 | 4″ | 380,0 | 150,0 | 5350 824 | – |
| 101,6 | 4″ | 152,0 | 114,0 | 5350 826 | – |
| 101,6 | 4″ | 254,0 | 150,0 | 5350 828 | – |
| 101,6 | 4″ | 380,0 | 203,0 | – | 5351 410 |
| 110 | 4 3/8″ | 400,0 | 148,0 | 5350 830 | – |
| 114,3 | 4 1/2″ | 390,0 | 161,0 | 5350 832 | – |
| 114,3 | 4 1/2″ | 400,0 | 161,0 | – | 5351 412 |
| 120 | 4 3/4″ | 410,0 | 170,0 | 5350 834 | – |
| 127 | 5″ | 330,0 | 173,0 | 5350 836 | – |
| 127 | 5″ | 415,0 | 173,0 | 5350 838 | – |
| 127 | 5″ | 415,0 | 173,0 | – | 5351 414 |
| 152,4 | 6″ | 470/500 | 240,0 | 5350 841 | – |
| 152,4 | 6″ | 475,0 | 225,0 | 5350 847 | – |
