Beschreibung

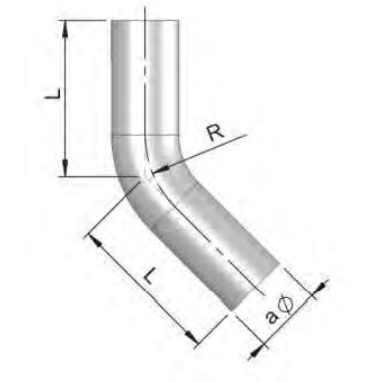

Hier finden Sie alle wichtigen Informationen zu unseren 45° Rohrbögen ohne Aufweitungen.
Durchmessera in mm |
Zoll |
SchenkellängeL in mm |
BiegeradiusR |
Stärket in mm |
ArtikelnummerStahl, aluminisiert |
ArtikelnummerEdelstahl |
| 38,0 | 1 1/2″ | 112,0 | 54,0 | 5350 400 | – | |
| 45,0 | 1 3/4″ | 142,5 | 64,0 | 5350 401 | – | |
| 50,0 | 2″ | 140,0 | 95,0 | 5350 402 | – | |
| 50,8 | 2″ | 150,0 | 76,0 | 2,0 | – | 5351 601 |
| 57,0 | 2 1/4″ | 150,0 | 85,0 | 5350 404 | – | |
| 60,0 | 2 3/8″ | 150,0 | 100,0 | 5350 406 | – | |
| 63,5 | 2 1/2″ | 180,0 | 85,0 | 5350 408 | – | |
| 65,5 | 2 5/8″ | 180,0 | 85,0 | 5350 410 | – | |
| 70,0 | 170,0 | 5350 411 | – | |||
| 70,0 | 2 3/4″ | 205,0 | 98,0 | 5350 412 | – | |
| 76,2 | 3″ | 230,0 | 99,1 | 5350 414 | – | |
| 76,2 | 3″ | 250,0 | 114,3 | 2,0 | – | 5351 602 |
| 76,2 | 3″ | 250,0 | 135,0 | 2,0 | – | 5351 603 |
| 80,0 | 230,0 | 115,0 | 5350 416 | – | ||
| 88,9 | 3,5″ | 200,0 | 135,0 | 2,0 | 5351 604 | |
| 88,9 | 3 1/2″ | 225,0 | 177,0 | 5350 418 | ||
| 88,9 | 3,5″ | 300,0 | 152,4 | 2,0 | – | 5351 605 |
| 100,0 | 245,0 | 203,0 | 5350 420 | – | ||
| 101,6 | 4″ | 245,0 | 203,0 | 5350 422 | – | |
| 101,6 | 4″ | 235,0 | 150,0 | 5350 424 | – | |
| 101,6 | 4″ | 300,0 | 152,4 | 1,5 | – | 5351 606 |
| 101,6 | 4″ | 300,0 | 152,4 | 2,0 | – | 5351 607 |
| 110,0 | 260,0 | 148,0 | 5350 426 | – | ||
| 114,3 | 4 1/2″ | 260,0 | 161,0 | 5350 428 | – | |
| 120 | 4 3/4″ | 365,0 | 170,0 | 5350 430 | – | |
| 127 | 5″ | 365,0 | 173,0 | 5350 432 | – | |
| 127 | 5″ | 305,0 | 173,0 | 5350 434 | – | |
| 127 | 5″ | 350,0 | 170,0 | 2,0 | – | 5351 608 |
| 152,4 | 6″ | 338,0 | 225,0 | 5350 436 | – |
